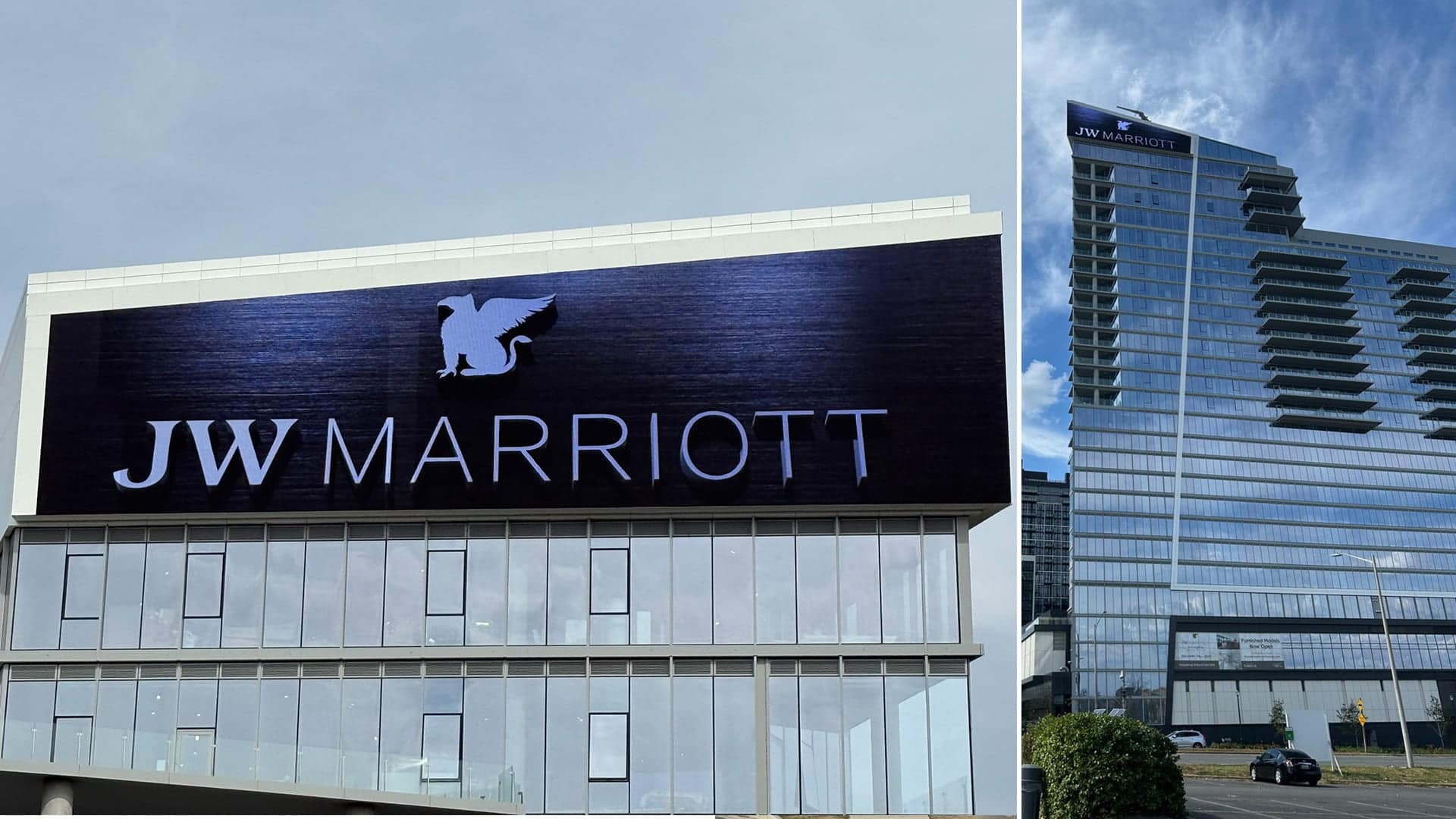

Project Overview

Daylight Illusion. Nighttime Illumination. Architectural Integration at Scale.

Render Impact was engaged to design and produce bespoke 3D LED content for the JW Marriott Crown installation at Reston Station in Virginia. The objective was precise: transform a large-scale architectural LED surface into a hyper-realistic extension of the building’s façade during the day, and an elegant illuminated sign at night.

The display, with a resolution of 3050 × 460 and a 16 mm pixel pitch, required a content approach that prioritized clarity, realism, and material accuracy at scale. Rather than create overtly animated content, this project required restraint, nuance, and technical precision. The goal was to make the LED disappear into the architecture during daylight hours, then transition seamlessly into a refined illuminated identity after sunset.

The result is dynamic signage that shifts with environmental conditions, sun position, and time of day, while remaining aligned with Marriott brand standards.

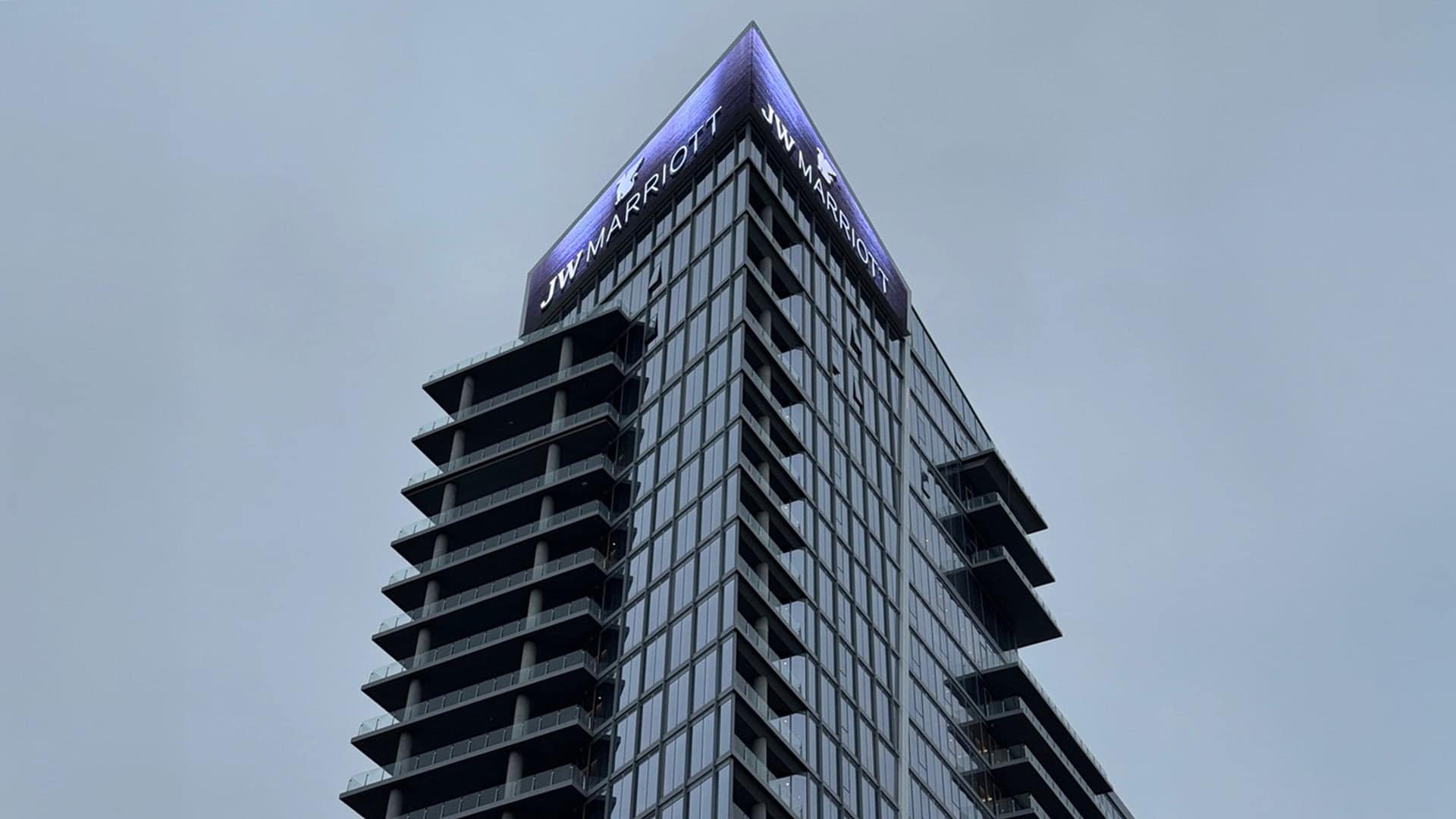

The Challenge

This was not an anamorphic spectacle. It was something more difficult.

The LED surface is integrated into a skewed architectural geometry. That geometry creates visual dissonance when traditional flat branding is applied. The illusion only works if:

→ The logo appears physically mounted to the building

→ The background perfectly matches adjacent metal panels

→ Reflections behave like real-world materials

→ Brightness levels balance with changing weather conditions

→ Shadows align with the actual sun direction

Adding complexity, the content had to comply with strict Marriott brand standards, including stacked logo requirements and specific color usage.

The mandate was clear: make it look real.

Concept Development

Daylight Signature Mode

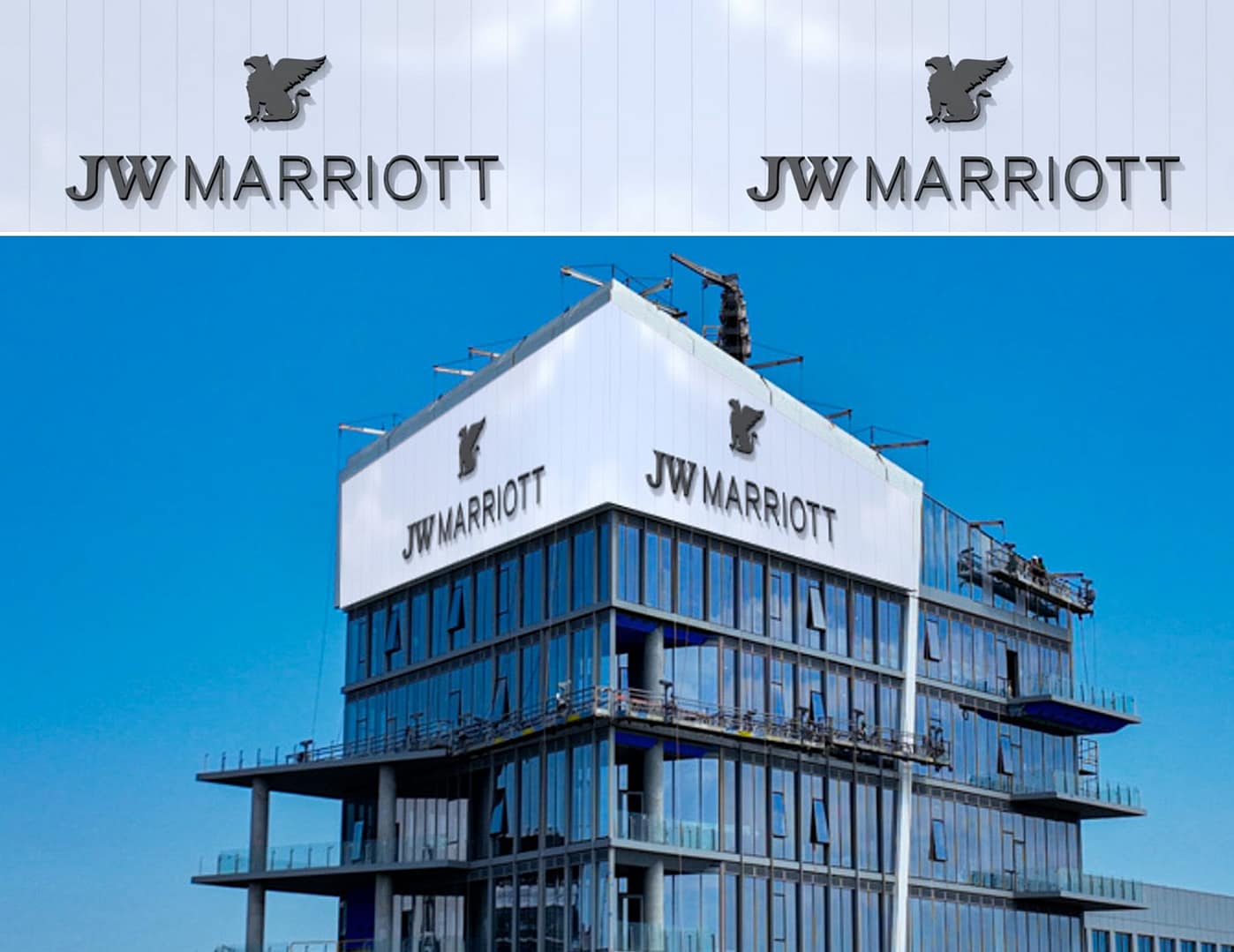

During the day, the LED mimics a permanent physical sign affixed to the building.

The JW Marriott logo and griffin are rendered in high-fidelity 3D and matched in color, material, and lighting to the surrounding façade. The background replicates the off-white metal panel finish, including subtle tonal shifts and surface relief.

Key features:

→ Micro-reflection shimmer across metallic lettering

→ Adjusted depth and extrusion to increase physicality

→ Brushed metal texture refinement

→ PMS-based color matching with digital calibration

→ Removal of artificial background lines for realism

→ Custom background color tuning to match “Moonstone Metallic (PT-02d)” finish

→ Environmental testing under sunny and overcast conditions

The effect is subtle but powerful. Viewers experience a moment of uncertainty, questioning whether the sign is physical or digital.

That hesitation is intentional.

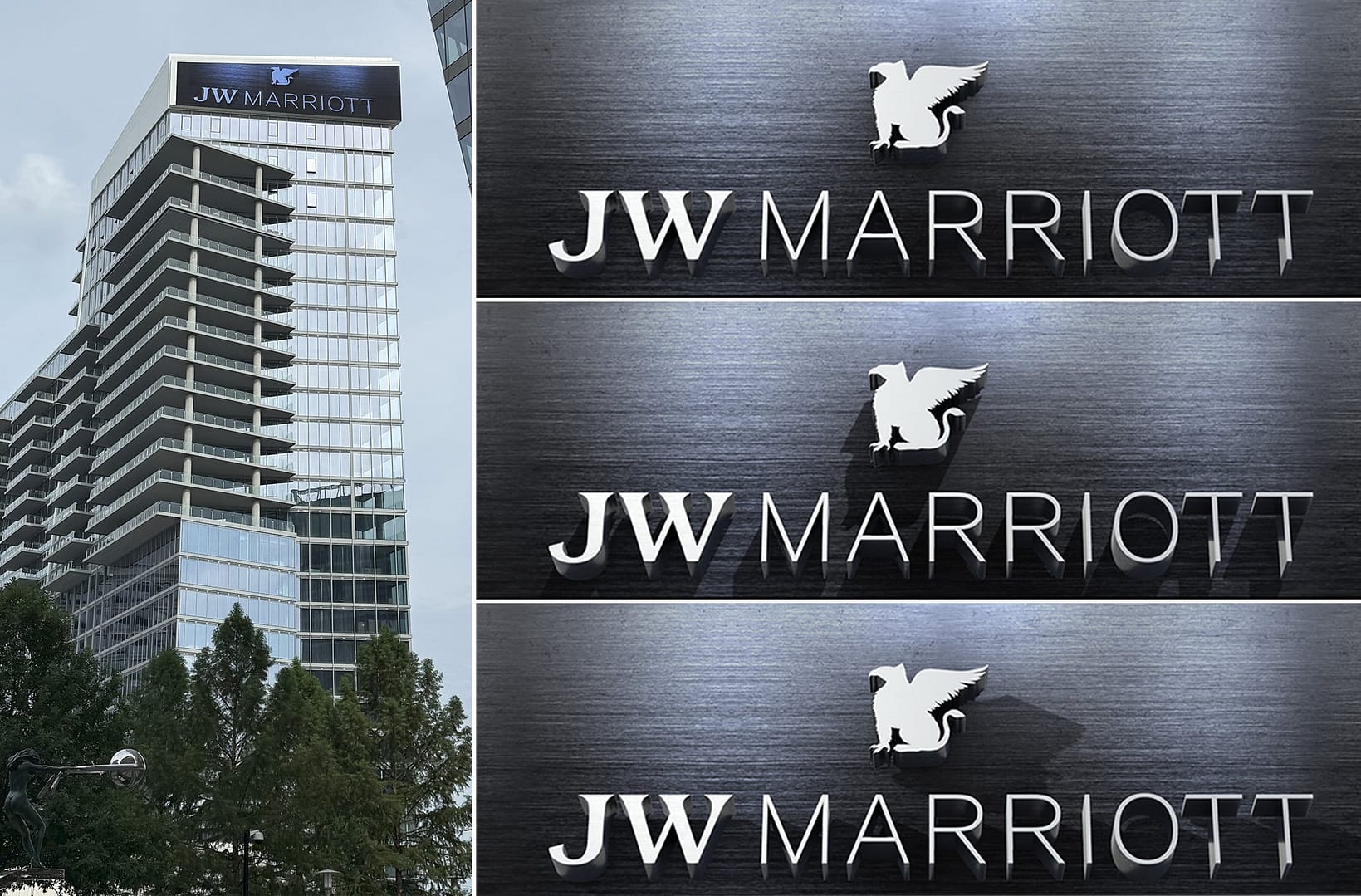

Multi-Version Time-of-Day System

Because outdoor LED behaves differently under varying sun positions and weather conditions, we developed three distinct daytime versions:

→ Morning

→ Midday

→ Afternoon

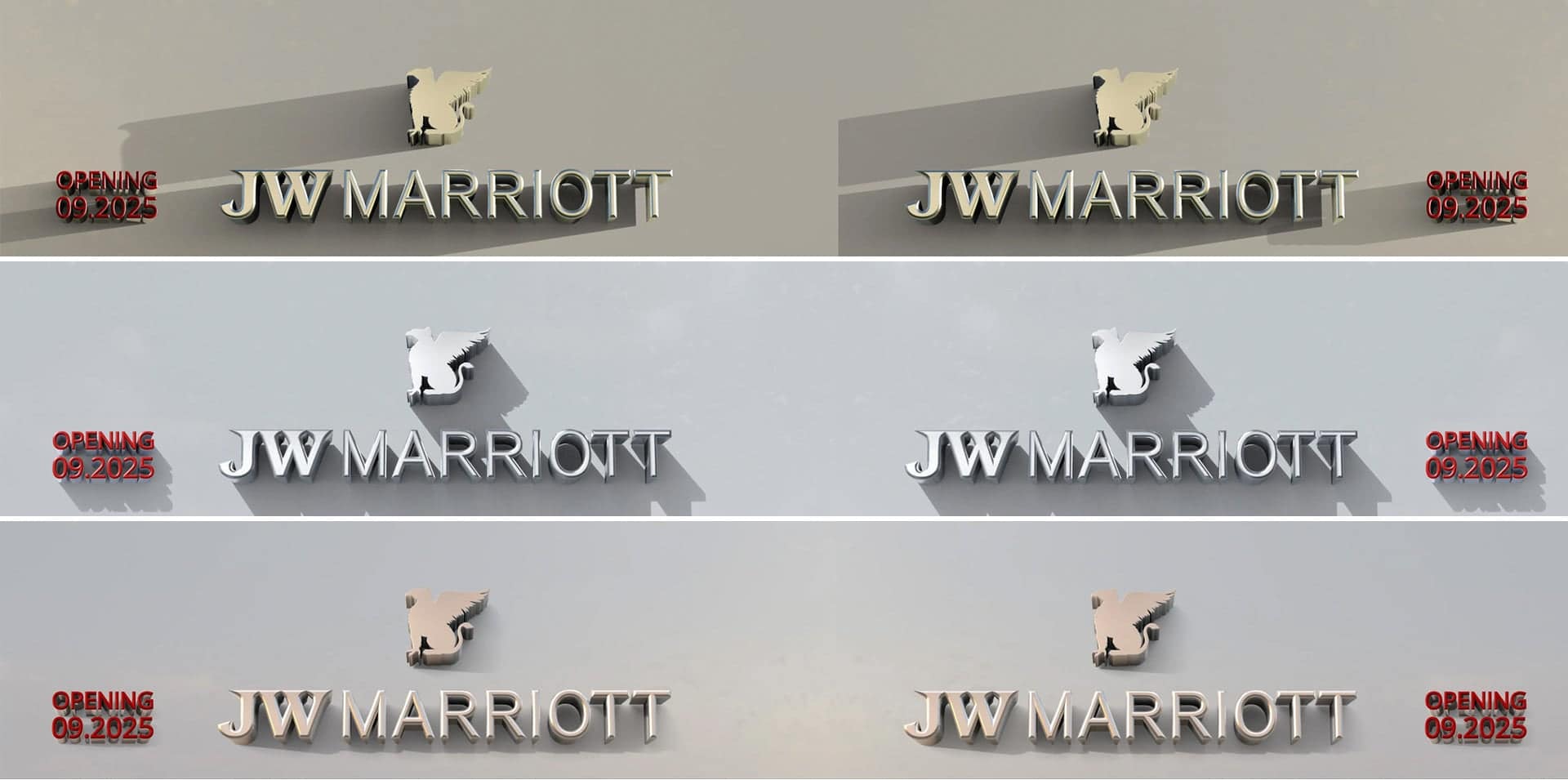

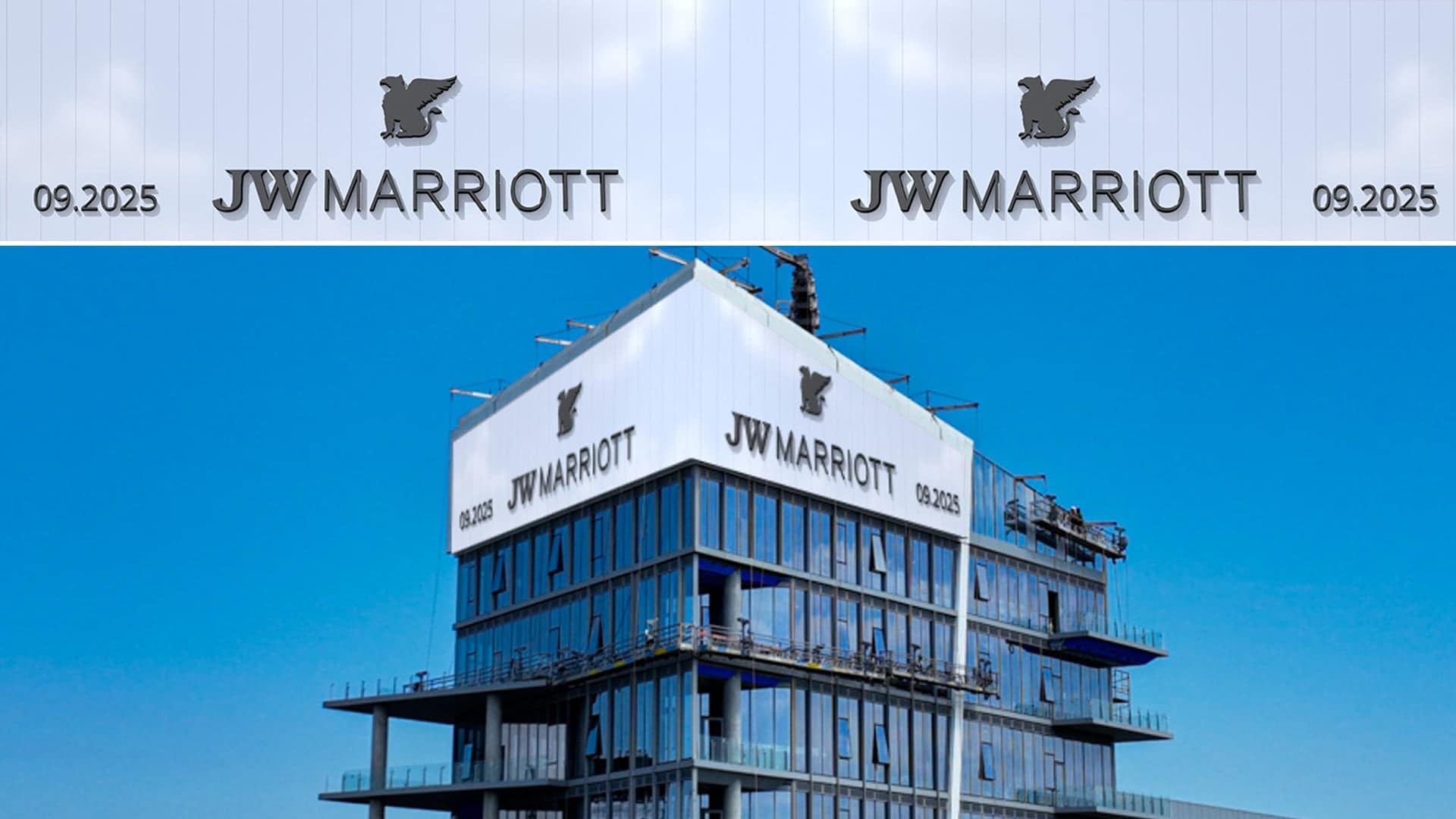

Opening Date Integration

The client required the inclusion of “Opening 09.2025.”

Multiple treatments were explored:

→ Dimensional plaque style

→ Temporary banner concept

→ Flat red lettering with subtle depth

Final direction focused on legibility, realism, and temporary visual emphasis without overpowering the primary logo.

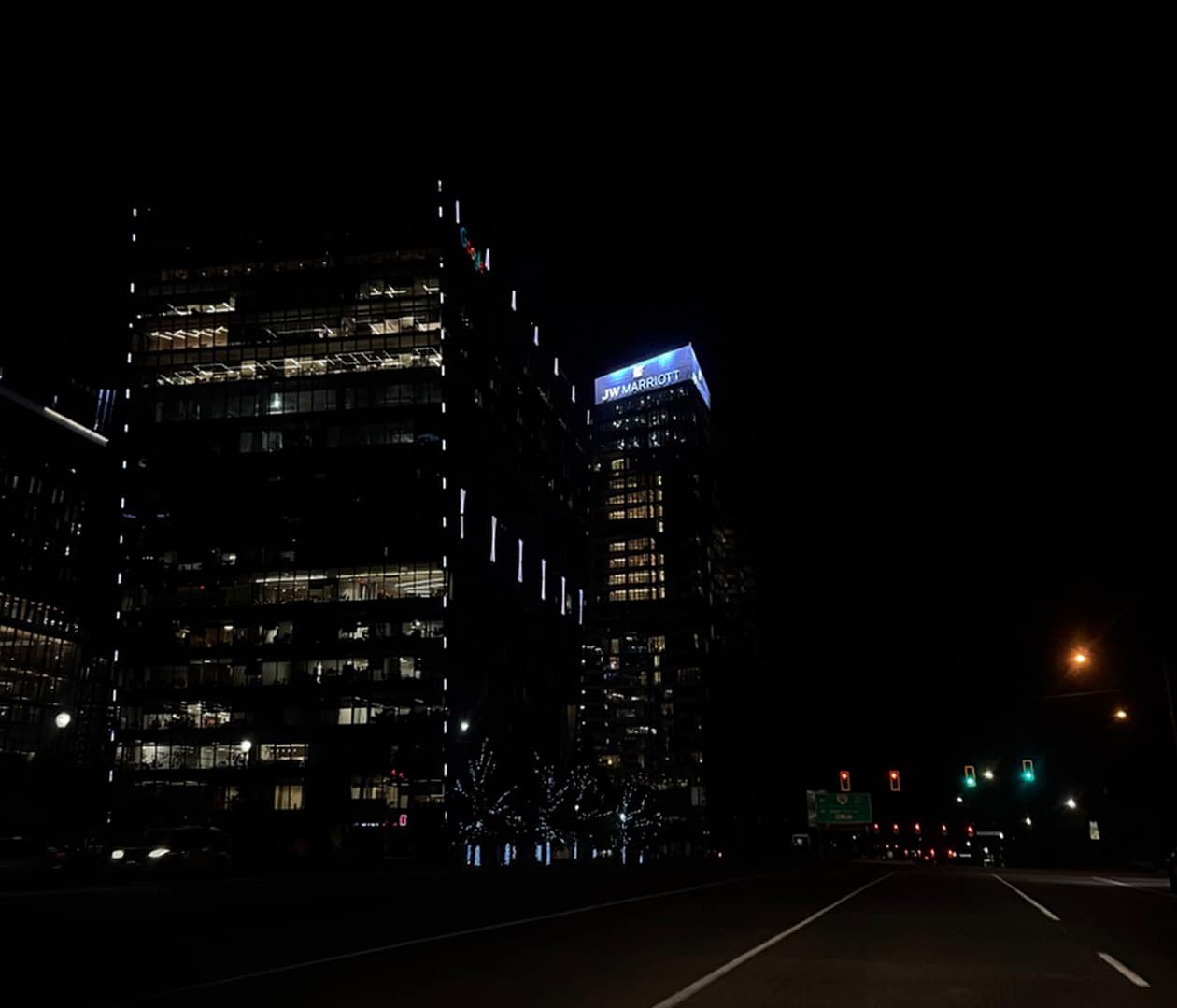

Night Mode Transition

At sunset, the content transitions to a restrained black background, reducing glare and blending into the skyline.

The JW logo remains luminous in a clean, illuminated style designed to emulate traditional backlit signage.

The nighttime treatment includes:

→ Controlled halo glow

→ Brushed metallic light behavior

→ Reduced shimmer

→ Brightness calibration for 50% LED dimming

The transition from day to night is gradual and refined, preserving luxury while enhancing visibility.

Less light. More sophistication.

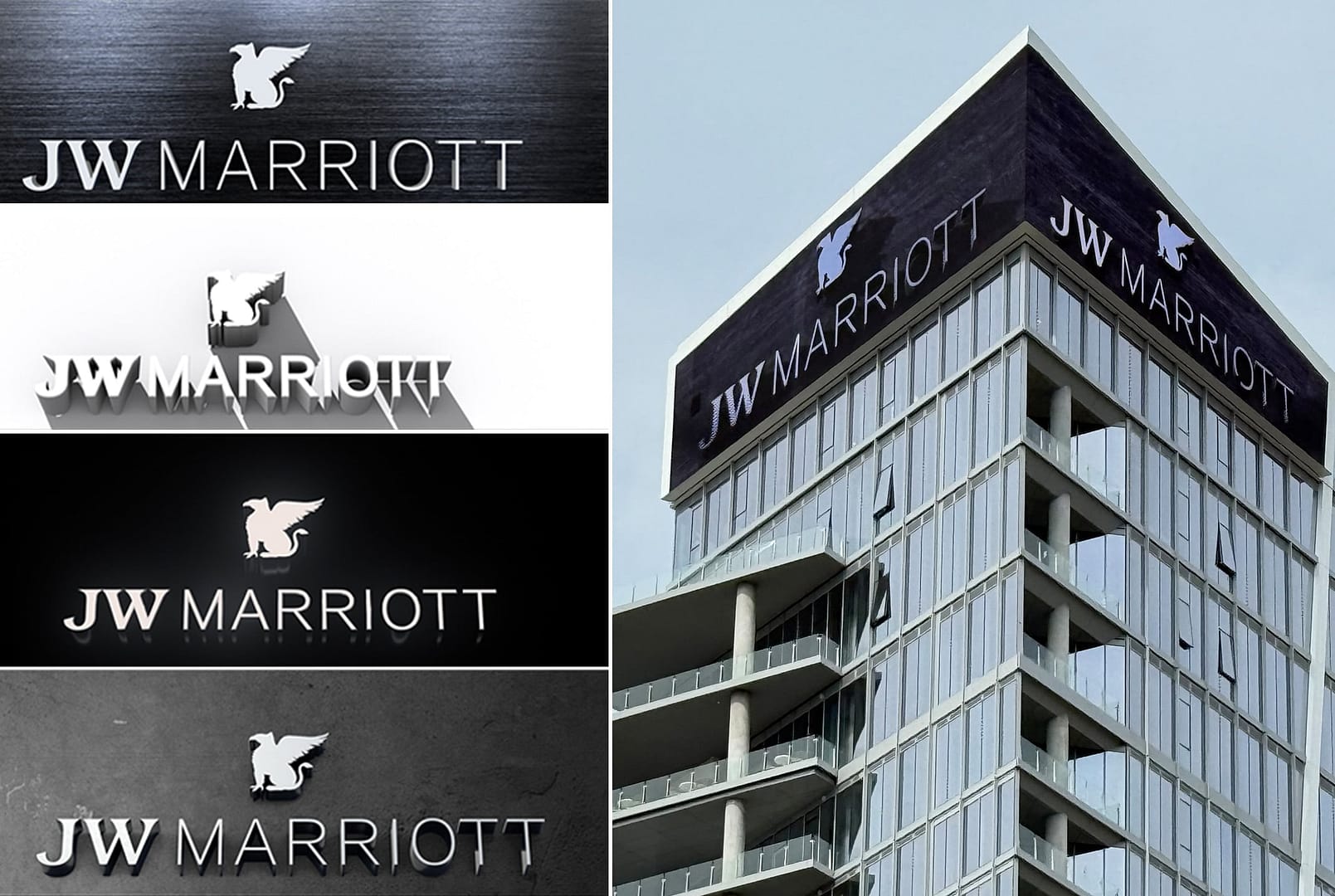

Technical Execution

This project required a hybrid approach of:

→ 3D modeling and texture refinement

→ Environmental lighting simulation

→ Real-world sun tracking reference

→ Drone footage PreViz corner pinning

→ On-site brightness testing

→ Iterative color tuning across 10+ background variations

→ Layered content exports for flexible CMS scheduling

To solve real-world environmental challenges, we separated deliverables into modular layers:

→ Static background PNG

→ Shadow overlays for different times of day

→ Alpha channel logo videos with shimmer

→ Night versions without shimmer

→ Transition sequences

This modular system allows the client to adjust opacity and layer behavior based on live environmental conditions.

It is not just content. It is a system.

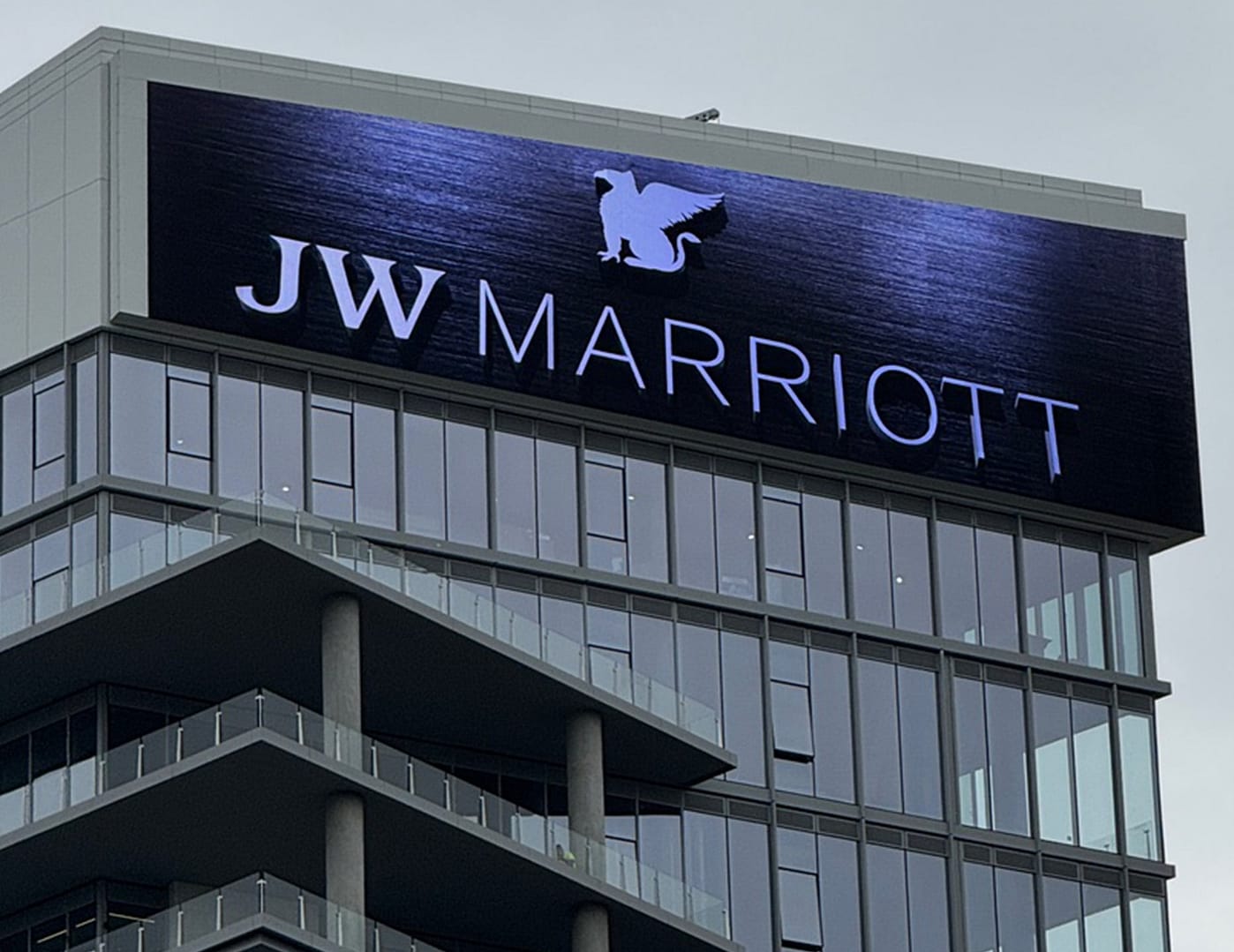

Results

The final installation delivers:

→ Architectural integration that reads as permanent signage

→ Dynamic realism across lighting conditions

→ Marriott brand compliance

→ A seamless day-to-night transformation

→ A scalable framework for future updates

The most important outcome is subtle.

Drivers do not immediately recognize the LED as digital. They see a physical sign. Then they question it.

That second look is the win.

It was a really smooth process working with them. We could ask questions, give feedback, and see updates come through without it getting complicated. They took the time to understand how we actually run the screen day to day, which made things a lot easier on our end. The final result looks great. It feels clean, realistic, and fits the building perfectly.

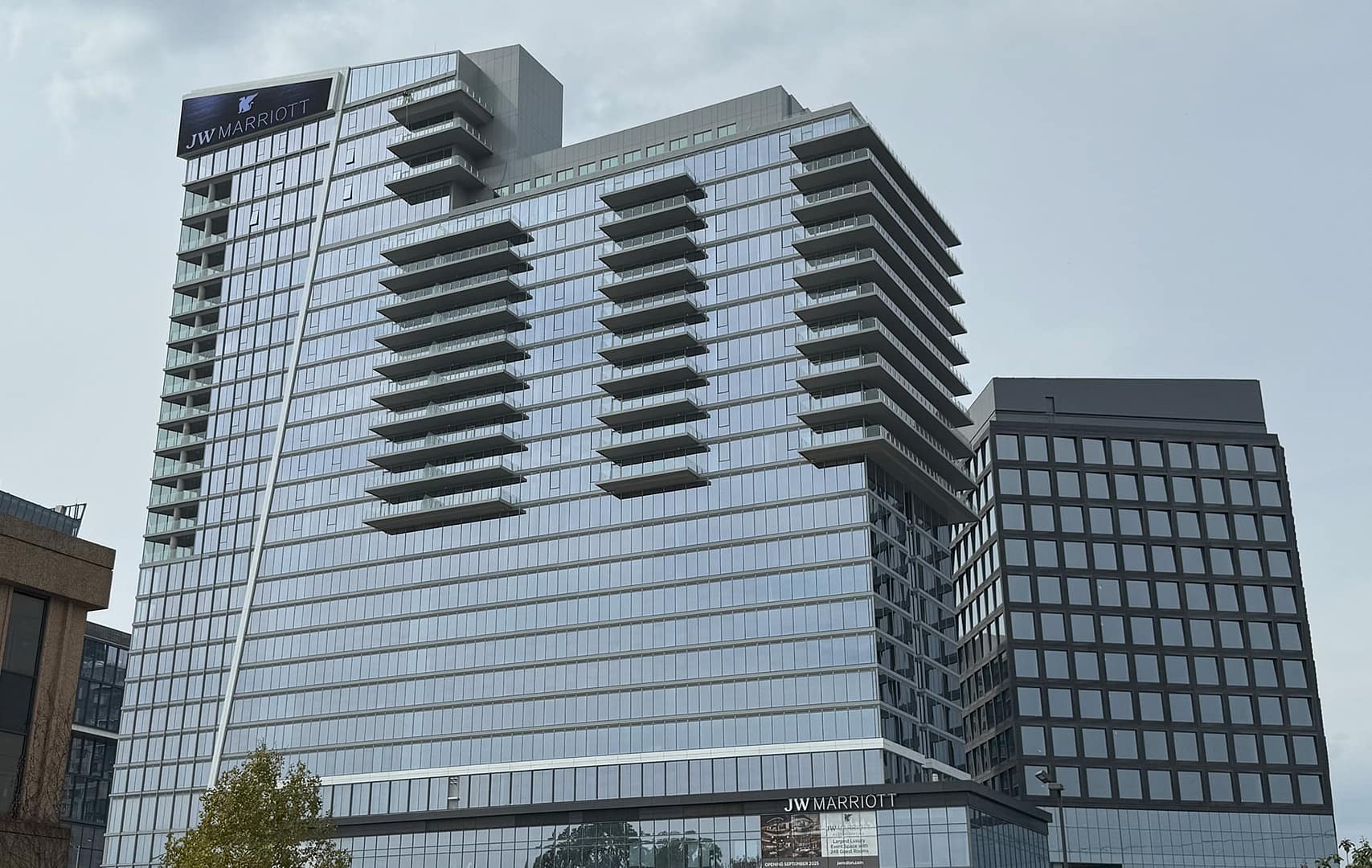

Scope Summary

→ 3 Daytime versions (Morning, Midday, Afternoon)

→ Day-to-night transition animation

→ Night illumination version

→ Logo refinements and metallic texture adjustments

→ Background color calibration to match Alucobond Moonstone Metallic

→ Opening date integration

→ CMS-ready layered exports
